PI(Polyimide)
1. Description
Polyimide (sometimes abbreviated PI) is a polymer of imide monomers. Polyimides have been in mass production. Guangzhou Engineering Plastics Industries (Group) Company has studied and applied this material in many industries for many years. With their high temperature resistance, chemical resistance, mechanical toughness, natural lubricity, wear-resistance & insulation properties. It provides operating temperatures from cryogenic to 300°C (570°F), great plasma resistance, plus a UL rating for minimal electrical and thermal conductivity.
2. Characteristic
1. Excellent mechanical properties
2. Both high temperature resistance and low temperature resistance
3. Great flame retardant
4. Great wear resistance
5. Great radiation resistance
6. Outstanding electric insulation
7. Chemical resistance
3. Application:
1. Parts and components with low friction coefficient and wear-resistance under high-speed and high pressure.
2. Parts and components with excellent anti-creep or plastic deformation
3. Parts and components with excellent self-lubricating and oily properties.
4. Fluid sealing parts under high temperature and high pressure.
5. Parts and components with high bending resistance, high tensile strength and high-impact performance.
6. Parts and components with corrosion-resistance, radiation-resistance, rust resistance.
7. Parts with continuous work temperature over 300℃ and short term temperature can up to 400-450℃.
8. High temperature (over 260℃) structural adhesive resistant (modified epoxy resin, modified phenolic resin, modified silicone adhesive does not exceed 260 ℃ .
9. Micro-electronics packaging, the protection coating of stress buffer, the internet layer insulate parts of multi-layer structure, dielectric films, the chip surface passivation and so on.
5. Size:

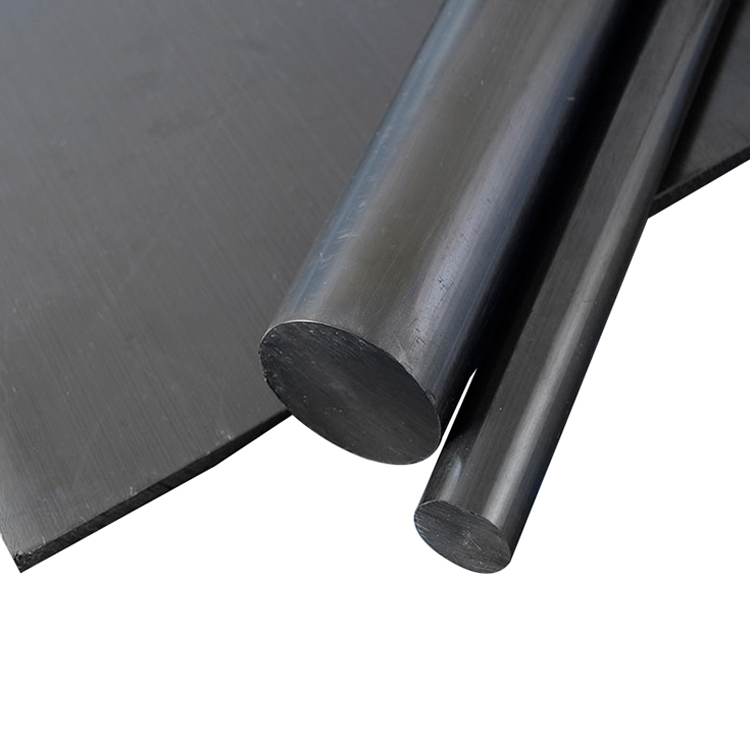

PI Sheet: 5-100mm*600mm*1000mm
PI Rod:5-150mm*1000mm
